Name: Martyr Streamlined Shaft Anode - Zinc, Metric
SKU: 680318

Martyr Streamlined Shaft Anode - Zinc, Metric

$ 36.70

$ 0.00

Save: $

(1) Shaft Diameter:

22 mm
25 mm
28 mm
30 mm
34 mm
35 mm
40 mm
45 mm
50 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
95 mm
100 mm
110 mm
115 mm
120 mm
123 mm
125 mm

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

Use Option (1) to select Shaft Diameter

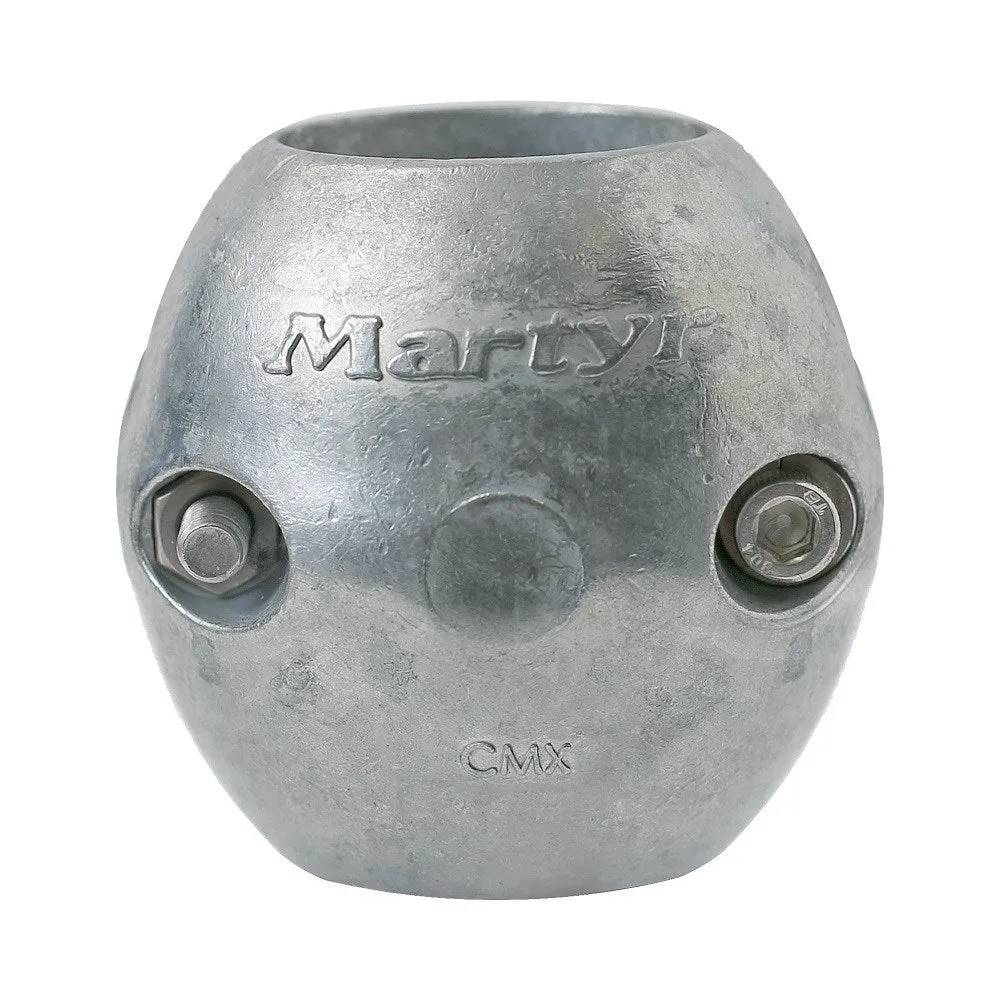

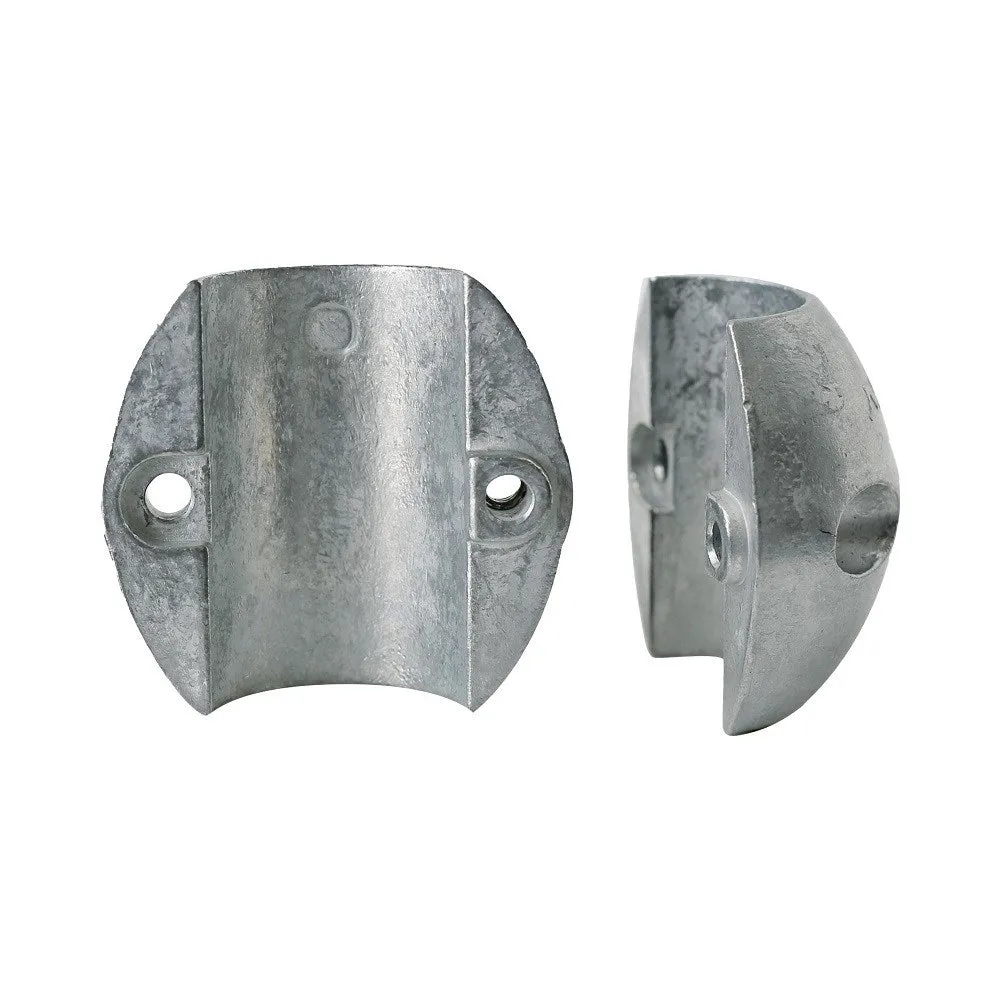

Martyr CMX Shaft Anode is a 2 pieces anode that comes complete with stainless steel hardware including lock washers. It has 3 clever design elements that make it the most successful and popular product in the market, features include interlocking halves (for the best fit); circular inside diameter (ensures a tight fit); extra alloy around the fasteners (stays on longer that standard types).

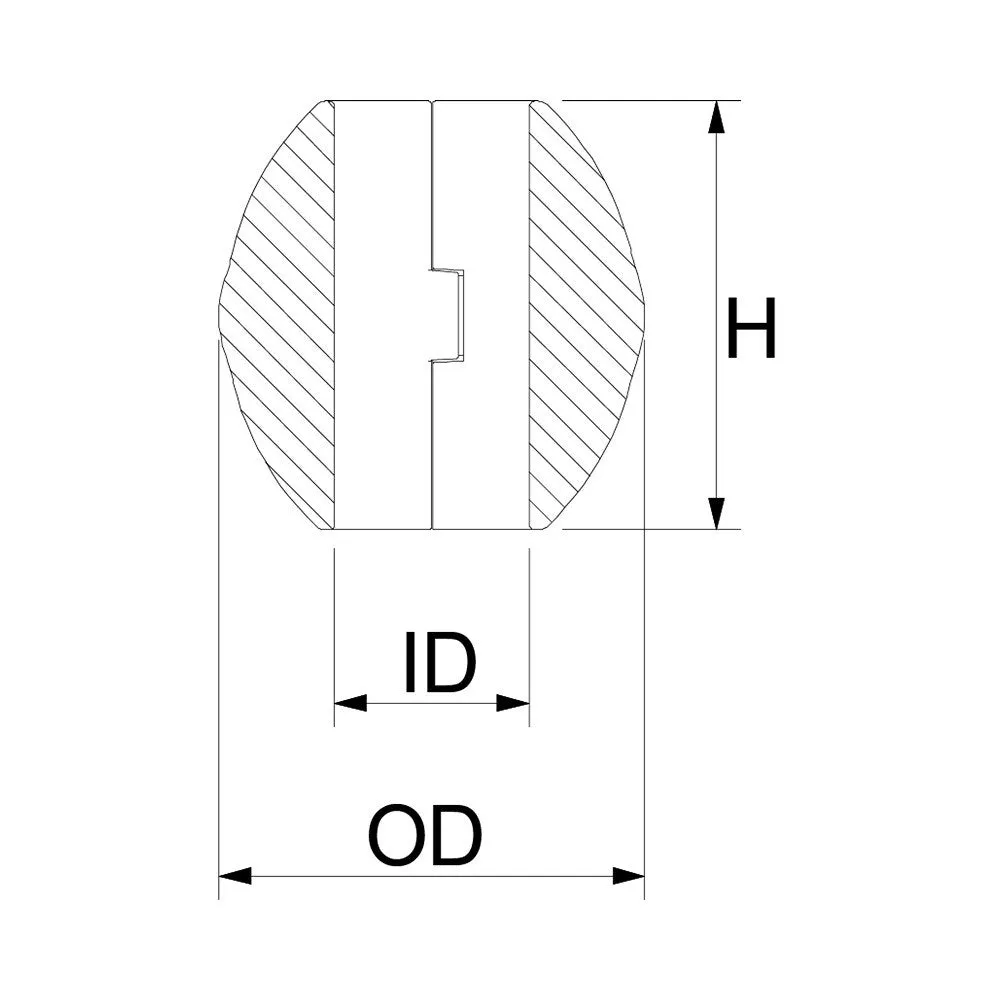

Product Number	Weight (kg)	H (mm)	OD (mm)	ID (mm)
CMXM20Z	0.33	48	51	20
CMX22Z	0.31	48	51	22
CMX25	0.55	55	61	25
CMX28	0.58	56	61	28
CMX30	0.55	61	61	30
CMX34	0.79	65	70	34
CMX35	0.73	65	70	35
CMX40	1.43	73	84	40
CMX45	1.26	73	84	45
CMX50	1.07	73	84	50
CMX55	2.73	90	105	55
CMX60	2.59	95	106	60
CMX65	3.58	90	120	65
CMX70	3.48	100	120	70
CMX75	4.03	100	125	75
CMX80	4.16	100	130	80
CMX85Z	3.04	106	122	85
CMX90	4.92	110	144	90
CMX95Z	4.40	110	144	95
CMX100	5.12	100	150	100
CMX110	13.06	160	180	110
CMX115Z	12.46	160	180	115
CMX120Z	10.91	160	180	120
CMX123Z	10.34	160	180	123
CMX125Z	9.90	160	180	125
